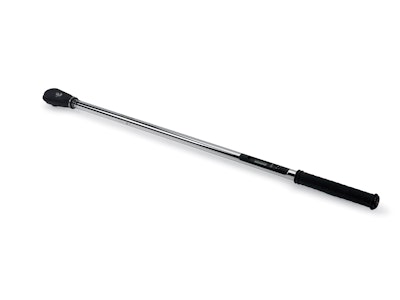

“The Snap-on Heavy Duty TechAngle torque and angle wrench eliminates the need for angle gauges and protractors, providing the most accurate and efficient way to achieve torque plus angle tightening sequences now specified by many manufacturers,” says Mark Knapp, product manager for Snap-on. “The Heavy Duty TechAngle gives you the precision, power and performance to do the job right every time.”
Features and benefits include:
- Digital readout displays a torque setting and, with a push of a button, switches to the angle mode
- Angle readout not affected by ratcheting
- Angle calculation based on the same gyroscopic technology that maintains helicopters at level flight
- Torque accuracy: (2% CW & 3% CCW from 20 – 100% F.S.) (4% CW & 6% CCW from 10 – 19% F.S.)
- Angle accuracy: ± 1% of reading ±1° @ angular velocity > 10°/sec <180°/sec
- Angular display resolution: 1°
- Manual preset and automatic track, peak and first peak modes
- Audible (tone) and tactile (vibrating handle) preset alerts
- Comfortable non-slip grip handle
- Sealed ratchet head
- Low battery indicator and auto shutoff after two minutes idle
- Operating temperature: 40 -110º F (5 – 42° C)
- Storage temperature: 0 – 122º F (-20 – 50° C)
- ISO-6789-2003 and ASME B107-28-2005 standards compliance
- Certificate of N.I.S.T. traceability for 20% to 100% of full scale
