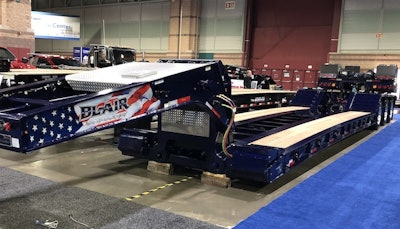

The trailer features a new hydraulically operated system to allow operation of the third axle only or a combination of third and fourth axles. The 60CC/55SA-LD also features an 18-in. loaded deck height and 6-in. ground clearance. It also gives operators the ability to switch between configurations, for load versatility and limiting the need for additional permitting, Talbert says.
Capacity for various configurations are: 55 ton in 10-ft. two-point rigid load base with 108-in. swing and four axles close coupled; 55 tons in 13-ft. two-point rigid load base with 132-in. swing and 3+1 E1Nitro axle extension; and 60 tons in 13-ft. two-point rigid load base with 108-in. swing and four axles close coupled.
“When you look at the overall size of heavy-haul loads, a couple inches might not seem consequential; but to our customers, those two inches can make a world of difference,” says Troy Geisler, Talbert vice president, sales and marketing. “Talbert has always been at the forefront of heavy-haul innovations, providing the trailers customers need to operate safely and efficiently in industries around the world. The 60CC/55SA-LD offers these operators the flexibility they need with a single trailer.”
The base model of the 60CC/55SA-LD features a 108-in. swing radius, 26-ft. deck length and 8-ft.-6-in. deck width. Additional customization is possible, including a 24-in. flip gooseneck extension that increases swing radius to 132 in. and allows greater load transfer capabilities, Talbert says.
With a four-axle, close-coupled configuration, it provides a 55-ton capacity in 10 ft. and 60 tons in half the deck length. It is also rated for 55 tons in half the deck length with a 132-in. swing radius and 3+1 configuration with the E1Nitro axle extension system. This system uses a combination of hydraulic fluid and nitrogen to equalize axle pressures, providing proportionate weight distribution of each axle grouping to optimize the range of suspension movement and minimize stress for a smoother ride, the company says.
The 60CC/55SA-LD is manufactured with heavy-duty T-1, 100,000-psi minimum yield steel for extreme durability and longevity. Valspar R-Cure 800 paint is standard on all Talbert trailers to prevent corrosion, offering a long-lasting finish and better return on investment, the company says.

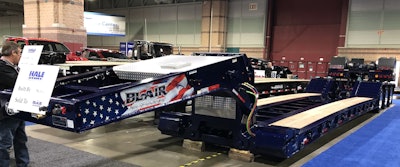

Talbert will showcase a customized 3+1 configuration of the 60CC/55SA-LD trailer CONEXPO-CON/AGG, March 10-14, 2020. The show model is designed to be under 53-ft. overall length with a 28-ft. deck length and tandem axle trailer with provisions for a third and fourth axle capable of a 2, 3, 4 and 3+1 axle configuration set up.
