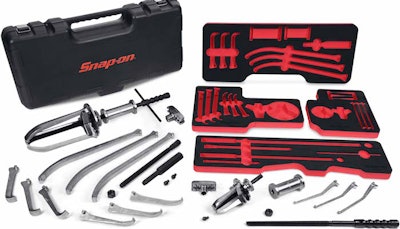

With a 6-12.5 ton capacity, the heavy-duty manual interchangeable master puller set provides technicians next-level access and power for a variety of pulling applications, such as removal of gears, sprockets, pulleys, bearings, bushings and sleeves. The nearly identical components create 48 different puller configurations while the spring-loaded locking mechanism reduces the chances of the puller slipping off of the work surface as its jaws latch on for both “inside” and “outside” pulling applications, the company says.
The reversible jaw design and two-position yokes accommodate multiple jaw lengths up to 15 in., while the spring-loaded mechanism allows for quick changeover without disassembly of the puller or need of nuts and bolts. This makes for a faster set-up requiring fewer man-hours. The tough, one-piece jaw construction of the CJ2500 does not use pins or bolts, providing a tougher, safer jaw with six jaw sets. Its heat-treated forged jaws, yokes and power pressure screws provide strength and endurance, Snap-on says.
With a 2.5 ton capacity, the light-duty manual interchangeable master puller set (CJ2400) also provides technicians access and power for a variety of pulling applications, such as removal of gears, sprockets, pulleys, bearings, bushings, sleeves, seals, bronze and Oilite bushings and pressed-in studs.
The exchangeable components create 36 different puller configurations while the spring-loaded locking mechanism reduces the puller slipping off of the work surface as its jaws latch on for pulling applications. The reversible jaw design and two-position yokes accommodate multiple jaw lengths up to 3.5 in., while the spring-loaded mechanism allows quick changeover without disassembling the puller and without the need of nuts and bolts, the company says.
The tough one-piece jaw construction of the CJ2400 does not use pins or bolts, providing a stronger, safer jaw with six jaw sets. Heat-treated forged jaws, yokes and power pressure screws make this set an investment that will last, the company says.
Both master puller sets work with other CJ pullers in the product line and are made in the U.S.
