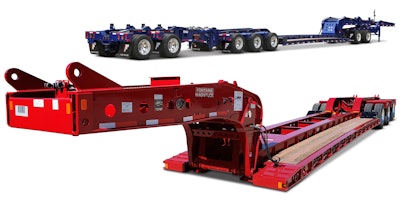

Fontaine Heavy-Haul introduces the Magnitude 60HD modular low-bed trailer.
“The 60HD is a Heavy-Duty 60 ton trailer that hits a 'sweet spot' for operators who need more capacity than standard 55 ton models but want to avoid the financial jump to a 65 or 70 ton trailer,” says Todd Anderson, vice president, sales and marketing. “As equipment weight trends heavier, this trailer is a welcome addition to our product line for many of our customers.”
Fontaine says the Magnitude 60 HD hauls 60 tons in 16-ft., utilizing the Fontaine EQ2 Spreader and two additional axles (3+2 configuration). Equipped with a modular tridem bogie, this incredibly versatile trailer can connect with four different deck options so you can match the load configuration to the task at hand: from a flat level, drop side rail, or beam deck to an extendable deck (available early 2022).
The Fontaine Magnitude 60HD is designed for customers operating in regions where spread axle configurations are required to maximize their trailer loads, but it can also handle 65 tons in 12-ft., without adding a flip box or a spreader. Fontaine says this means customers can achieve a lighter trailer setup at a lower acquisition cost if local regulations allow a 4-axle close couple configuration by just adding a flip axle.
Fabricated with 100,000 lb., minimum yield steel flanges, the Magnitude 60HD also is designed to provide years of dependable service, the company says. The standard trailer boasts a true 26 ft., clear deck length and a loaded deck height for the flat level deck of 22 in., with 6 in., of ground clearance. Both the flat level and drop side rail decks are available in optional 9 ft., width along with 5 ft. or 10 ft., deck inserts for added flexibility. Fontaine also adds a wide variety of accessories are available.
