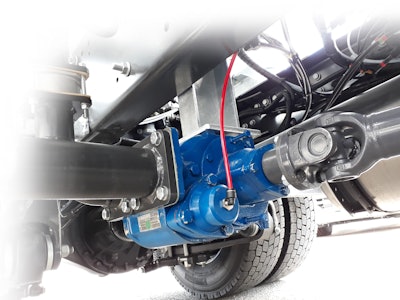

Developed as a vehicle-mounted solution for loading and unloading petroleum products for trucks and transports, Mouvex says the CC10-24 includes all of the same cutting-edge features and benefits as the Mouvex CC8 pump while incorporating a variety of new enhancements.
The new enhancements to the CC10-24 have been specifically designed to make the pump smaller, lighter (70.6 lb./32 kg), quieter (72 dBA) and more environmentally friendly while increasing pump efficiency and reducing delivery times. Along with these advancements, Mouvex says the CC10-24 features an integrated by-pass designed to protect against excessive pressures and overheating, and is equipped with a 500-micron strainer. Mouvex CC10-24 pumps are also virtually maintenance free, reversible and have been engineered with double ball bearings for longer pump life. Mouvex says these pumps are ATEX certified and available with a 3-year warranty.
Additionally, Mouvex CC10-24 pumps are offered in cast iron and steel, and are available with flow rates up to 42 m3/h (185 gpm), pressures to 145 psi (10 bar) and pump speeds to 1,500 rpm. Optional features include mechanical by-pass with spring 72.5 or 145 psi (5 or 10 bar), pneumatic by-pass and SAE A hydraulic trunk, the company says.
