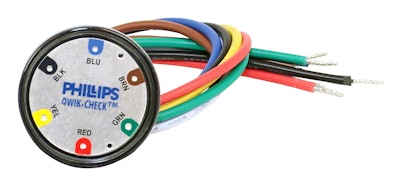

Designed for integration into the electrical system of the nosebox, Phillips says QWIK-CHECK eliminates the immediate need for a continuity tester, visually confirming an electrical signal from the tractor to the trailer.
With the tractor turned on and power supplied to the 7-way connection, the color-coded LED lights of the QWIK-CHECK will light up as each circuit receives power, Phillips says. Each light is an indication that power to the correlating circuit is reaching the 7-way connection. If a light does not come on, Phillips says this indicates that there is a problem with the associated circuit and further investigation is warranted.
Phillips says the QWIK-CHECK is currently offered for universal installation on any nosebox, or as a readily available replacement for units already installed on the i-BOX or VOLT-BOX noseboxes. The universal unit comes with 12-in. blunt cut wires and ring terminals to customize installation. Replacement units come with wires pre-cut to length and ring terminals already installed, the company adds.
