Optronics International has introduced its new modular LED strip light model ILL23CB.
The versatile new light is 17.25 in. long and 0.75 in. thick and can be mated together to form a solid, linear light source measuring 6.939 ft. in length. Its design makes it easy to install, even in corners, and its automotive styling and end caps give the light a clean, finished look, the company says.
LED strip lights on vehicles have become more and more ubiquitous as their designs have advanced. However, the lamps are generally engineered for independent applications, and if multiple lamps are used together, each must be wired in a sequence, or “daisy-chained” together. The wiring process can be tedious and time consuming and often leaves the finished application looking cobbled together.
Optronics’ modular LED strip light is designed for total adaptability and can be used in virtually any interior environment. Individual lamps have a streamlined ABS housing with an integrated acrylic lens and require just two fasteners for surface mounting.
Each lamp comes with a power cap on one end and trim finish cap on the other. Both caps are detachable, revealing modular connecting ports that enable up to six of the lamps to plug together, giving the resulting lamp configuration a long, clean, seamless look.
“Our modular LED strip light offers total installation versatility and looks great no matter which length is selected,” says Marcus Hester, vice president, sales and marketing, Optronics International. “Its intelligent design is rivaled only by 6,000 K daylight brightness, providing almost 7 linear ft. of seamless LED illumination.”
The lamp’s optical characteristics create a broad, smooth, even beam pattern that can illuminate large areas. Each 18-diode lamp packs 880 raw lumens and delivers 730 effective lumens.

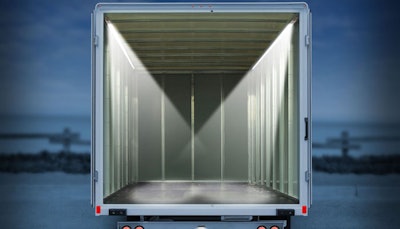

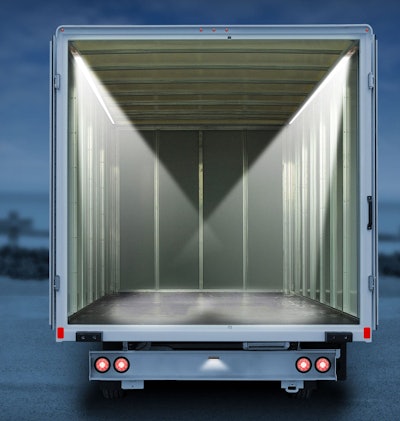

The lamps are perfect for ceiling and corner-mount applications. Their low profile makes them less vulnerable to strikes by cargo and loading equipment, and their nearly 7-ft. length makes them particularly suitable for lighting the long and narrow spaces inside vehicles. The interior lamps are rugged enough to be used on a variety of commercial vehicles and stylish enough to be used on consumer vehicles.
The modular LED strip light power caps are suitable for hardwired installation, and the multi-volt lamps accommodate both 12-volt and 24-volt vehicle electrical systems. One power cap is capable of powering up to six connected lamps.
The Modular LED Strip Light model ILL23CB is available for immediate shipping. Like all LED products from Optronics, these lamps come with the company’s no-hassle, one-diode lifetime warranty protection that will replace the lamp if even one diode fails.
“Our engineers took a good hard look at vehicle strip lighting,” Hester says. “They designed out the weaknesses they found and designed in new advantages that others simply hadn’t thought of.”
