Talbert introduces modular trailer

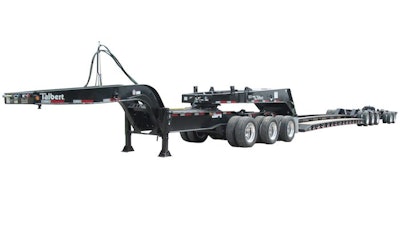

01.20.Talbert 65SA trailerTalbert Manufacturing introduces its 65SA Modular Trailer.

According to the company, the innovative new trailer takes advantage of Talbert’s custom-engineering experience to incorporate multiple axle configurations based on customer requirements for optimum versatility. The trailer’s design features a flip extension to accommodate a tandem- or tri-axle jeep dolly, allowing for maximum load configurations. It also can pair with Talbert’s revolutionary E2 or E3Nitro axle extension, which the company says dampens axle movement and controls load transfer.

The modular trailer maintains a 65-ton rating at half the deck length with a 16-in. loaded side deck height and 6-in. loaded road clearance.

“Every day, loads are getting bigger, wider and heavier,” says Troy Geisler, vice president, sales and marketing, Talbert Manufacturing. “On top of that, government agencies are pushing for stricter controls to protect aging infrastructure. To help our customers stay ahead of the curve — to run safely and efficiently, no matter their area of operation — Talbert has always offered first-class engineering and industry-leading versatility. The 65SA Modular Trailer is designed to help operators adjust axle configurations to fit the specific requirements of the load and the road.”

The 65-ton Modular Trailer is individually engineered for customized axle configurations including 2+3+2, 3+3+2 or other variations. For example, adding a tri-axle jeep allows a 3+3+3 configuration. Featuring 60.5-in. axle spacing, as well as an airlift on axle 3 and a chain lift on axles 1, 2, 4 and 5, the trailer is capable of running with 3, 4, or 5 axles in a row without a booster. The base model offers a 120-in. swing radius with connections for up to 70-in. gooseneck extension and can be custom-designed to provide a larger swing radius if necessary, the company says.

Talbert says its E2 or E3Nitro axle extension also can be engineered into the design. The technology uses a combination of hydraulic fluid and nitrogen to equalize axle pressures, providing proportionate weight distribution of each axle grouping. It optimizes the range of suspension movement, which minimizes stress and provides a smooth ride. In addition, Talbert says the ENitro system features a bearing pivot and pivot lockout for backing the trailer.

Users also can hydraulically lock in axle loads regardless of terrain. The E2Nitro comes standard with two-speed dual landing gear for optimal stability when disconnected from the trailer, Talbert says.

Offering a 28-ft. deck length, the 65-ton Modular Trailer is rated for 65 tons in a 13-axle configuration. Capacity increases to 70 tons in 15 ft. with a 4-axle close-coupled configuration. The trailer can also be designed to accommodate an additional 10- or 15-ft. section of deck, varying in type from beam to drop side.

“While every Talbert trailer is built to customer specifications, the 65SA is one of our most adaptable models,” Geisler says. “Adding additional axles after the fact can’t increase capacity, but factoring in these options during design allows our engineers to provide maximum flexibility with Talbert’s unmatched strength, reliability and longevity.”

Talbert says it manufactures the 65SA Modular Trailer with heavy-duty T-1, 100,000-psi minimum yield steel for extreme durability and longevity. Talbert trailers are standard with Valspar R-Cure 800 paint to prevent corrosion, offering a long-lasting finish and better return on investment.
