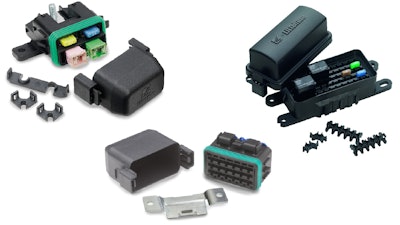

Two of the products come from Littelfuse’s HWB series — PDM31001ZXM and PDM21001LXM — and the third, BPDMA104HXF1, is a 2+2 MINI Fuse and JCASE holder.
Peerless says the first two products are hard-wired modules designed to be used with 280 style components (mini-fuses, relays, diodes, resistors, etc.). They feature 18 or 60 cavities creating a high-density fuse module with a compact footprint. These units allow users to completely customize the circuitry and the wires simply plug into the back of the module using sealed Delphi Metri-Pack Series 280 tanged terminals. The units are IP67 sealed making them more reliable in extreme environments so they can to be installed virtually anywhere on the vehicle, the company says.
The BPDMA104HXF1 accommodates two MINI fuses and two JCASE fuses. The use of these fuse types provides an amperage range of 2-60A in a compact package, Peerless says. The four fuses are bussed internally to the main input power stud which allows you to reduce wiring by making one input connection to power the four fuse circuits. The 2+2 holder is a sealed module making it ideal harsh environments, the company says.
