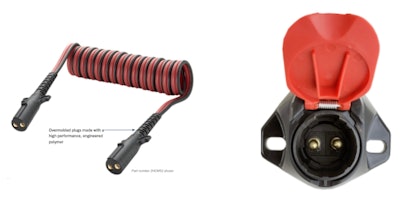

Tectran released a dual pole horizontal socket kit and dual pole horizontal cables recently.
The cables are used for charging trailer liftgate batteries and other high current power applications. It features solid, overmolded plugs that encapsulate and protect the terminals from water and other contaminants. It has four-gauge, high strand count copper conductors and an ArcticFlex cable jacket formula for use in extreme cold temperatures.
[RELATED: New metric push lock fittings from Tectran]
The cables have a maximum current carrying capacity of 200 amps for 12-volt intermittent use and 100 amps for continuous 12-volt use. They are SAE J3082 compliant and it's compatible with 670-22 and 670P-22W.
The dual pole socket kit is designed to withstand harsh weather conditions. The housing and lid are made from an advanced polymer material and the terminals are tin-plated for additional corrosion resistance. The kit includes shrink tubing for use at the wire terminations and a rubber boot to enclose the back of the socket are included for a complete install. It is also SAE J3082 compliant.
