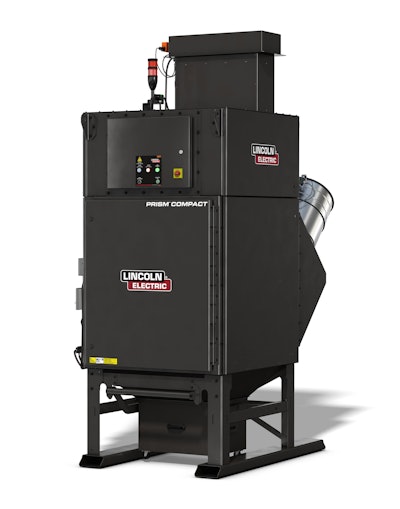

The Prism Compact system introduces a compact design and quiet operation, while delivering quick and easy installation and maintenance to help promote a safe and healthy work environment, the company says.
The Prism Compact’s design enables the user to position the unit directly next to a cutting table or robotic cell. Available in indoor and outdoor configurations, the system sits at a lower height configuration to fit into smaller spaces.
Additionally, the system ships without a pallet and assembles without the need for a crane. Lincoln Electric’s Smart Connect technology produces seamless wire connections. The circuitry enables the operator to connect a variety of functions: power, compressed air and duct sensor for fan speed control, the company says.
The Prism Compact uses a silencer and sound deadening materials that dramatically reduce airflow noise. The variable frequency drive adjusts fan speed and extraction airflow to the volume of air moving through the system in a given application, while intelligent fan control technology helps maximize fume extraction, conserve energy and extend equipment life.
The unit’s automatic cleaning process is initiated once the pre-set pressure differential has been reached. The vertical filter orientation allows for easier and more efficient cleaning, and particulate matter is collected in a 20-gallon dustbin, the company says.
