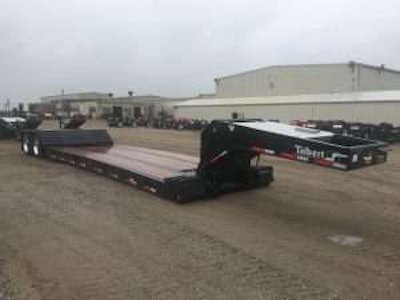

Talbert Manufacturing has introduced its 35CC-HRG lowbed trailer, rated at 70,000 lb. overall and 70,000 lb. within a 12-ft. load base. It also features Talbert’s removable hydraulic gooseneck for fast and easy equipment loading and unloading.
“Equipment is getting bigger, wider, taller and heavier,” says Troy Geisler, Talbert Manufacturing vice president of sales and marketing. “We’ve built a reputation on accommodating that need, but contractors also have smaller equipment they need to safely transport to and from jobsites every day. This is why we also offer dependable trailers designed specifically for that purpose.”
Talbert says it offers the 35CC-HRG with optional features such as fixed or platform goosenecks, various front and rear ramps, as well as multiple swing radiuses, deck lengths and widths. The trailer also can be equipped with a beavertail and ramp so users can drive equipment over the rear of the trailer rather than detach the unit’s gooseneck. This allows for fast equipment loading and unloading in confined areas.
“Our customers require a great deal of versatility. Each day or week could consist of moving a variety of equipment,” Geisler says. “This is why we take the time to listen and design our trailers to provide the most flexibility, tailoring each unit to the specific needs of the customer.”
The 35CC-HRG is part of Talbert’s Close-Couple Lowbed Series. The trailer’s two axles are close coupled and can be designed to accept an optional pin-on axle for loads requiring three axles in a row. The overall length of the 35CC-HRG is 43 ft. 9 in., which includes a 24-ft. long deck that is 8 ft., 6 in. wide, and a 9-ft. 9-in. rear bridge section. Swinging outriggers provide 12 in. of additional width on each side of the deck to accommodate oversized equipment. Talbert says contractors can also remove the outriggers to minimize weight and for easy maintenance.
Like all Talbert trailers, the 35-ton CC-HRG is rated in half the deck length to safely meet concentrated load requirements as high as 70,000 lb. Talbert designed the 35CC-HRG with an 84-in. swing radius and a non-ground bearing hydraulic gooseneck. The gooseneck features four hydraulic cylinders that are parallel to the ground rather than two vertically positioned cylinders. This eliminates the risk of the trailer sinking into soft ground as equipment is loaded, the company says.
Also, because the cylinders are horizontally placed, they are easier to access for maintenance and last longer due to their low-pressure hydraulic system. Contractors can use the 35CC-HRG to haul a variety of equipment.
The trailer’s recessed cross members in the rear bridge allow for easy positioning of an excavator boom. The deck flooring is 1.5-inch Apitong, which provides exceptional strength for long-term durability under heavy loads. The unit has one of the lowest deck heights in the industry — 22 in. — and a 6-in. road clearance to maximize headroom. Talbert says drivers can adjust the rear ride height of the Ridewell suspension system +3 or -3 inches for greater head clearance getting in and out of job sites or when traveling over uneven surfaces, such as railroad tracks.
