Jacobs introduces new 1.5 stroke high-power density engine brake

Updated May 25, 2018

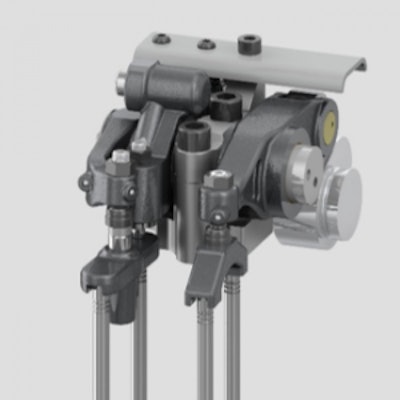

05 16 18 jacobs 300x300Jacobs Vehicle Systems has launched 1.5 Stroke HPD, a new variation of its innovative High Power Density (HPD) engine brake the company introduced on a demonstration truck in 2016.

According to Jacobs, this new HPD option provides heavy vehicles with significantly higher levels of supplemental braking force than traditional compression release braking, but with less complexity and cost than Two-Stroke HPD.

As with Two-Stroke HPD, Jacobs says the 1.5 Stroke HPD provides small- and medium-displacement engines with large engine displacement retarding power. By adopting a different valve train and valve opening strategy than Two-Stroke HPD, 1.5 Stroke HPD has a more conservative technical strategy that will better suit the requirements of some engine hardware without compromising on performance.

“1.5 Stroke HPD is a new development resulting from Jacobs’ ongoing HPD prototyping programme. It follows the launch of Two-Stroke HPD, which was designed for a particularly complex engine design,” says Steve Ernest, vice president of engineering and business development at Jacobs Vehicle Systems. “1.5 Stroke HPD is a simpler and more affordable route that will see our customers achieve the same step-change in braking performance as with Two-Stroke HPD, if their engine hardware allows for that.”

“Jacobs is now able to offer OEMs a modular compression release (CR) brake design frame, from the standard CR brake to the 1.5 Stroke HPD and the Two-Stroke HPD. Integrating Jacobs technology at the beginning of an engine program means engine braking options can be easily specified and adapted by geographic market, application and lifecycle requirements, while keeping 99 percent of the design elements the same, saving time and cost. The validation is already taken care of and the technology is essentially future-proofed.”

Jacobs says a conventional engine brake has one compression release and one brake gas recirculation (BGR) event for each of the engine’s cam rotations. With Two-Stroke HPD, cylinder deactivation mechanisms eliminate the main intake and exhaust valve events, allowing the intake and exhaust braking rockers to provide two intake, two CR and two BGR events per cam rotation.

In 1.5 Stroke HPD, the company says the exhaust event is deactivated; however, there is no deactivation of the main intake valve events and no additional intake lift events to support the second compression release. The normal intake is provided for the first CR, and gases used in the second compression release event are generated solely by the recirculation of exhaust manifold gases, without drawing air from the intake manifold, the company says.

With this simpler approach, Jacobs says the 1.5 Stroke HPD nevertheless realizes braking power improvements of up to 40 percent at high engine speeds when compared with traditional compression release braking, and improvements of up to 100 percent at low engine speeds. The low rpm benefits are especially important because of the increasing numbers of engines with higher power density and lower operating speeds, characteristics shaped by the pursuit of better fuel economy and lower total cost of ownership., the company says.

Finally, Jacobs adds the superiority of 1.5 Stroke HPD over conventional compression release braking is primarily due to the high air mass flows experienced with the Two-Stroke HPD cycle at low engine speeds, which allow the engine’s turbo to operate at higher efficiencies. The extent of improvements gained is influenced by engine architecture, design limits, and constraints. Jacobs says the highest engine brake performance is achievable with variable geometry turbochargers, increased injector tip temperature allowance, greater back pressure capability, and some means of adjusting boost or backpressure.
